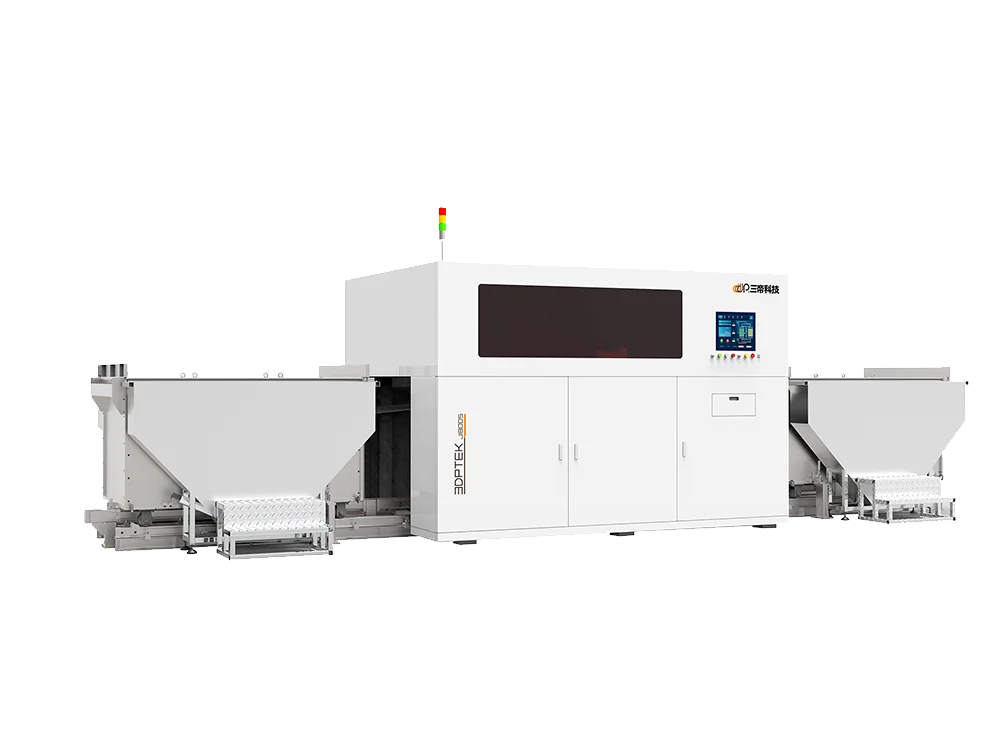

3DPTEK-J1800S

3DP Sand 3D Printer: 3DPTEK-J1800S

  • Core components are all high-end configuration, to ensure that the equipment is stable, reliable, low maintenance costs;
  • With nozzle internal circulation and automatic cleaning function, it is not easy to be clogged by adhesives;
  • The orbital molding cylinder is automatically pushed out with one key, and the pieces are picked up outside the machine, realizing the equipment's non-stop assembly line-type cycle operation.

±0.3mm

Maximum Printing Accuracy

20-25s/layer

Fastest molding speed

1.8 x 1.0 x 0.7m

Maximum molding size

Online Inquiry

3DPTEK-J1800S Equipment Introduction

The company independently developed 3DP sand printer 3DPTEK-J1800S. the equipment adopts the inkjet principle, by spraying the binder on the mixing platform of the special sand material and curing agent, and solidifying and molding layer by layer. The equipment uses international first-line high-precision, high-throughput nozzles, the printed products have good dimensional accuracy, high strength, low outgassing, excellent surface quality, to achieve non-contact automatic molding of the product, the equipment is stable, easy to operate, real-time monitoring of the working state, abnormal automatic alarm, safe and reliable operation. The equipment can be widely used in aerospace, military industry, automobile, ship, engineering machinery, scientific research institutes, digital sculpture and cultural and creative fields.

Equipment parameters

设备型号
3DPTEK-J1800S
设备占地尺寸
9000×2400×2700 mm
成型缸尺寸
1860×1060×720 mm
最大成型尺寸
1800×1000×700 mm
喷头分辨率
400dpi
成型精度
±0.3mm (≤300mm) ±0.5mm (>300mm)
成型材料
石英砂、陶粒砂等

Sample display

汽车零件砂模
航空航天砂型
工业机械砂模
高压电气砂模

Application Areas
